Proxies & Load Balancers

01 Proxies & Load Balancers
Notes
Chap 7 The Bridge into Modern Infrastructure.

Forward Proxy

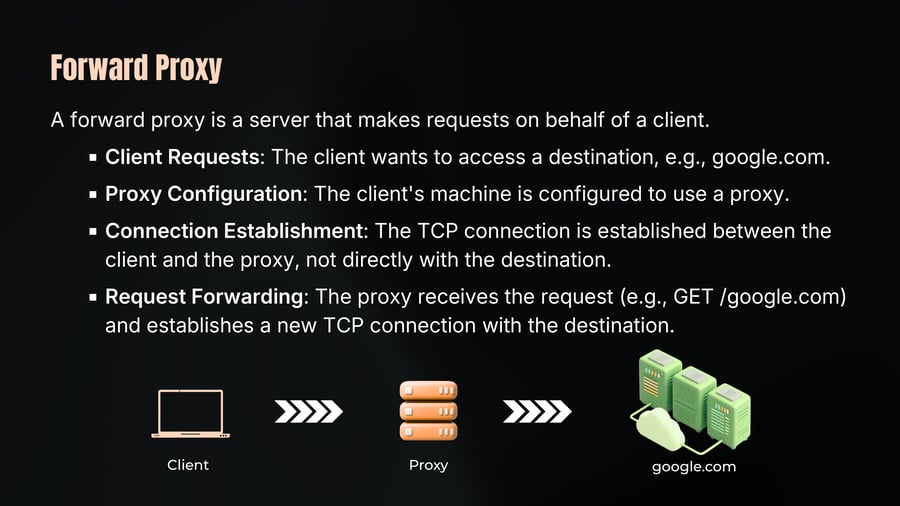

02 A diagram illustrating the flow of a forward proxy where a Client connects via arrows to a Proxy, which in turn connects to servers labeled google.com.
Notes
A forward proxy is a server that makes requests on behalf of a client. Client Requests: The client wants to access a destination, e.g., google.com. Proxy Configuration: The client's machine is configured to use a proxy. Connection Establishment: The TCP connection is established between the client and the proxy, not directly with the destination. Request Forwarding: The proxy receives the request (e.g., GET /google.com) and establishes a new TCP connection with the destination. Client Proxy google.com

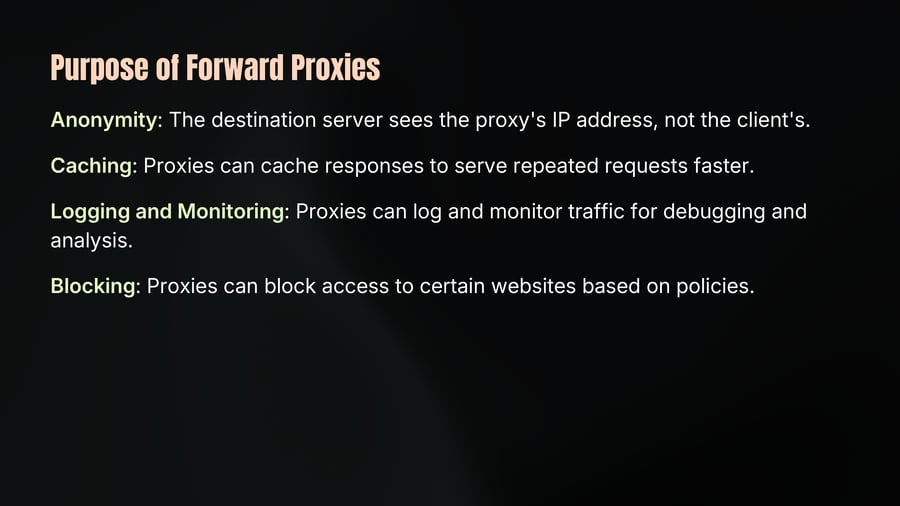

Purpose of Forward Proxies

03 Purpose of Forward Proxies
Notes
Anonymity: The destination server sees the proxy's IP address, not the client's. Caching: Proxies can cache responses to serve repeated requests faster. Logging and Monitoring: Proxies can log and monitor traffic for debugging and analysis. Blocking: Proxies can block access to certain websites based on policies.

Reverse Proxy

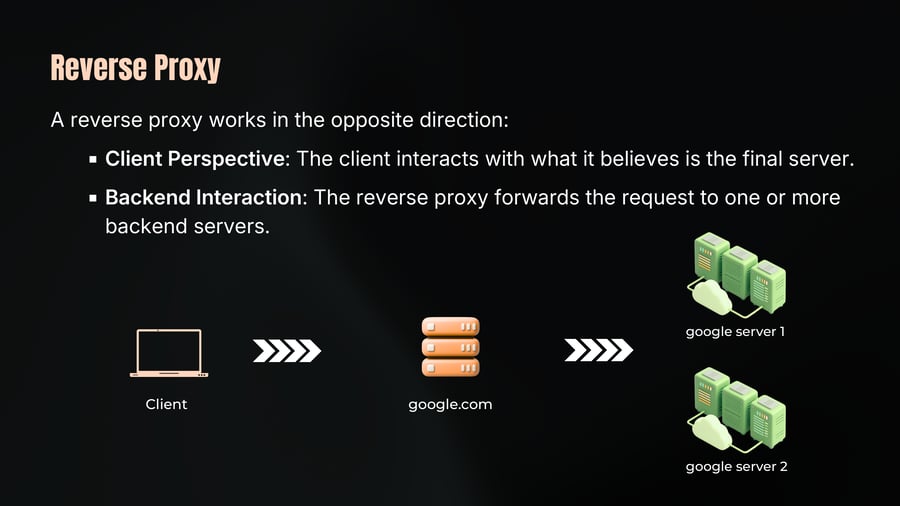

04 A diagram illustrating reverse proxy architecture, showing requests flowing from a Client to google.com, which then routes them to backend servers labeled google server 1 and google server 2.
Notes
A reverse proxy works in the opposite direction: Client Perspective: The client interacts with what it believes is the final server. Backend Interaction: The reverse proxy forwards the request to one or more backend servers.

Purpose of Reverse Proxies

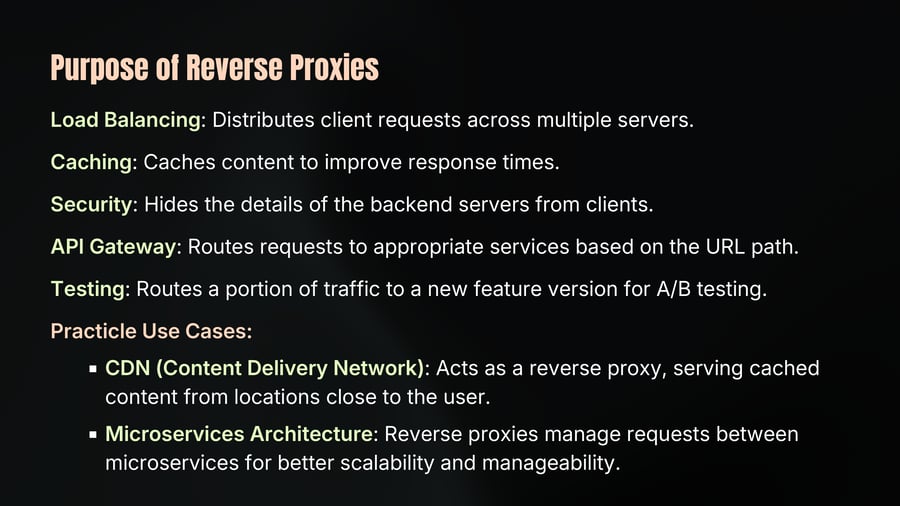

05 Purpose of Reverse Proxies
Notes
Load Balancing: Distributes client requests across multiple servers. Caching: Caches content to improve response times. Security: Hides the details of the backend servers from clients. API Gateway: Routes requests to appropriate services based on the URL path. Testing: Routes a portion of traffic to a new feature version for A/B testing. Practicle Use Cases: CDN (Content Delivery Network): Acts as a reverse proxy, serving cached content from locations close to the user. Microservices Architecture: Reverse proxies manage requests between microservices for better scalability and manageability.

Layer 4 Load Balancer

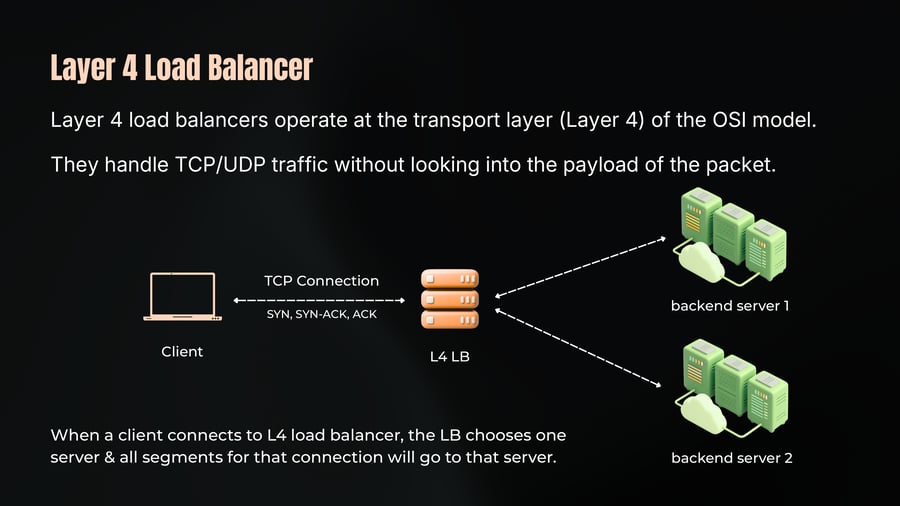

06 A network diagram illustrating a client establishing a TCP connection (SYN, SYN-ACK, ACK) with a Layer 4 Load Balancer, which routes segments to backend server 1 or backend server 2.
Notes
Layer 4 load balancers operate at the transport layer (Layer 4) of the OSI model. They handle TCP/UDP traffic without looking into the payload of the packet. TCP Connection SYN, SYN-ACK, ACK Client L4 LB backend server 1 backend server 2 When a client connects to L4 load balancer, the LB chooses one server & all segments for that connection will go to that server.

Layer 4 Load Balancer

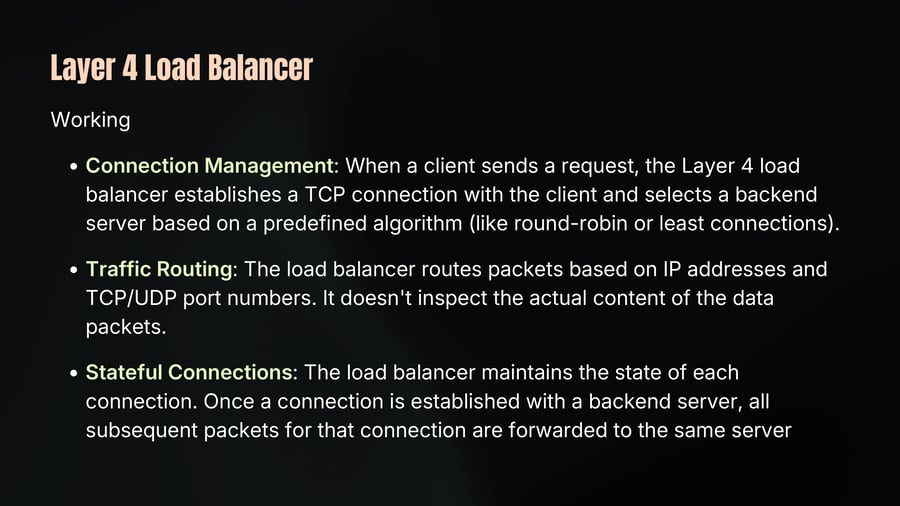

07 Layer 4 Load Balancer
Notes
Working Connection Management: When a client sends a request, the Layer 4 load balancer establishes a TCP connection with the client and selects a backend server based on a predefined algorithm (like round-robin or least connections). Traffic Routing: The load balancer routes packets based on IP addresses and TCP/UDP port numbers. It doesn't inspect the actual content of the data packets. Stateful Connections: The load balancer maintains the state of each connection. Once a connection is established with a backend server, all subsequent packets for that connection are forwarded to the same server

Layer 4 Load Balancer Working

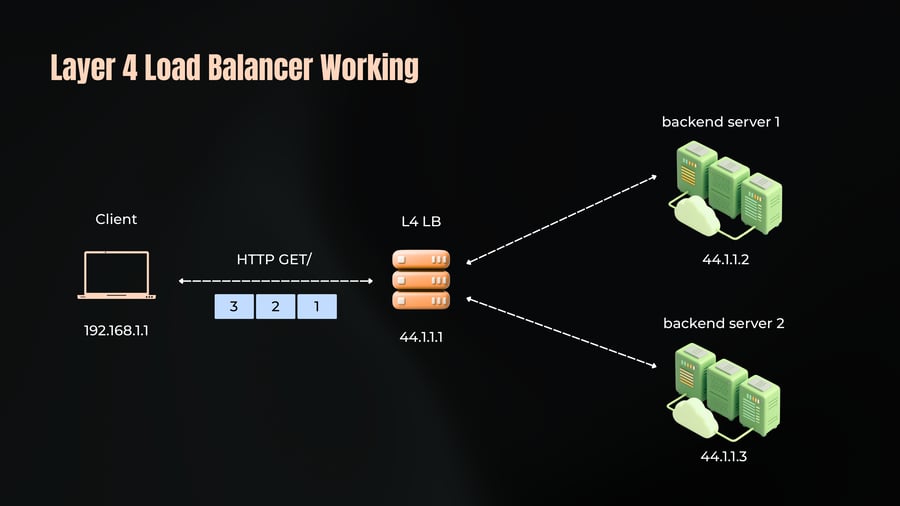

08 A network diagram illustrating a client sending an HTTP GET request (represented by data packets 1, 2, 3) to a Layer 4 Load Balancer at 44.1.1.1, which forwards traffic to backend server 1 (44.1.1.2) or backend server 2 (44.1.1.3).
Notes
backend server 1 Client L4 LB 44.1.1.2 HTTP GET/ 3 2 1 backend server 2 192.168.1.1 44.1.1.1 44.1.1.3

Layer 4 Load Balancer Working

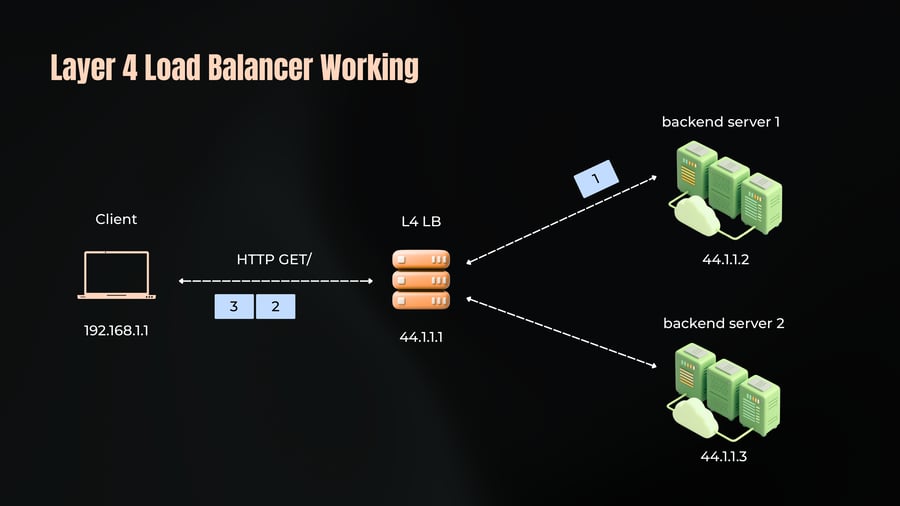

09 A network diagram demonstrating Layer 4 load balancing where traffic from a client (192.168.1.1) sending an HTTP GET request passes through an L4 load balancer (44.1.1.1) to backend server 1 (44.1.1.2) and backend server 2 (44.1.1.3).
Notes
Client 192.168.1.1 HTTP GET/ 3 2 L4 LB 44.1.1.1 1 backend server 1 44.1.1.2 backend server 2 44.1.1.3

Layer 4 Load Balancer Working

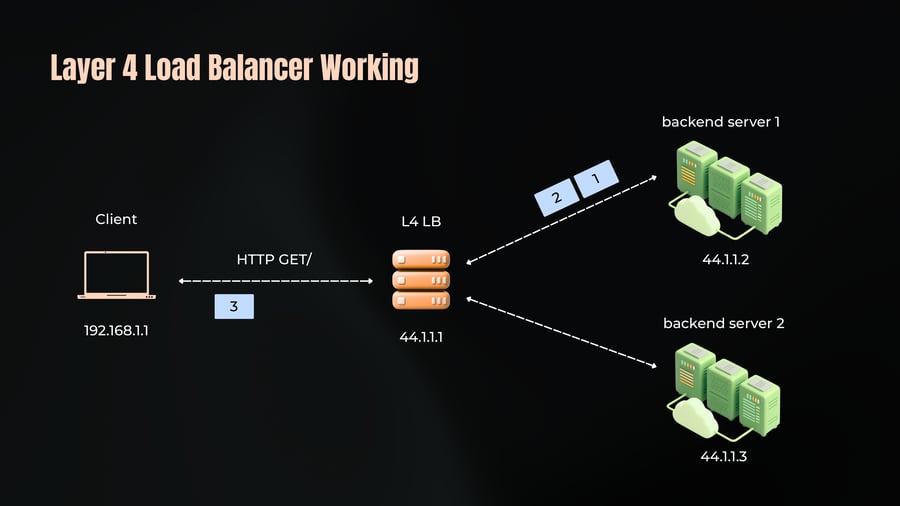

10 Architecture diagram demonstrating Layer 4 load balancing where a client connects to an L4 load balancer that routes traffic to two backend servers.
Notes
Client HTTP GET/ 3 192.168.1.1 L4 LB 44.1.1.1 2 1 backend server 1 44.1.1.2 backend server 2 44.1.1.3

Layer 4 Load Balancer Working

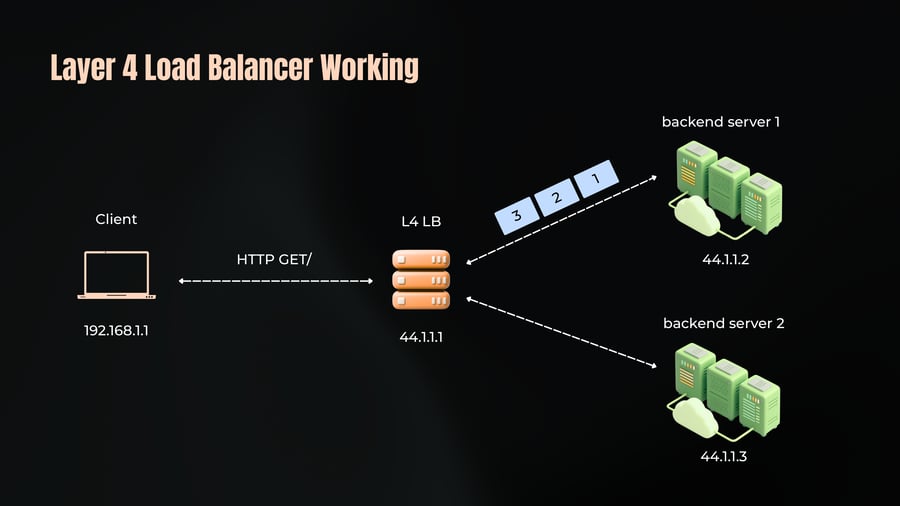

11 A diagram illustrating a Layer 4 Load Balancer directing network traffic packets labeled 1, 2, and 3 from a client (192.168.1.1) to backend server 1 (44.1.1.2) and backend server 2 (44.1.1.3) via an L4 load balancer (44.1.1.1).
Notes
Client 192.168.1.1 HTTP GET/ L4 LB 44.1.1.1 1 2 3 backend server 1 44.1.1.2 backend server 2 44.1.1.3

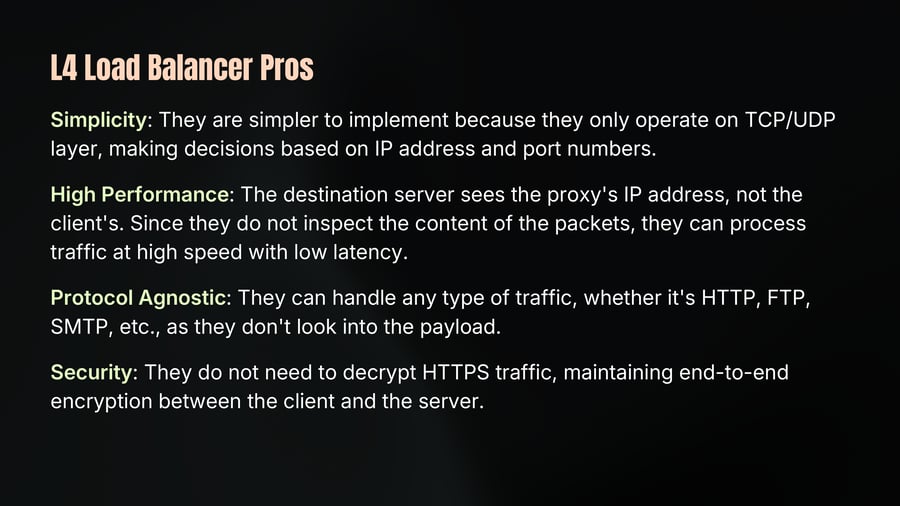

L4 Load Balancer Pros

12 L4 Load Balancer Pros
Notes
Simplicity: They are simpler to implement because they only operate on TCP/UDP layer, making decisions based on IP address and port numbers. High Performance: The destination server sees the proxy's IP address, not the client's. Since they do not inspect the content of the packets, they can process traffic at high speed with low latency. Protocol Agnostic: They can handle any type of traffic, whether it's HTTP, FTP, SMTP, etc., as they don't look into the payload. Security: They do not need to decrypt HTTPS traffic, maintaining end-to-end encryption between the client and the server.

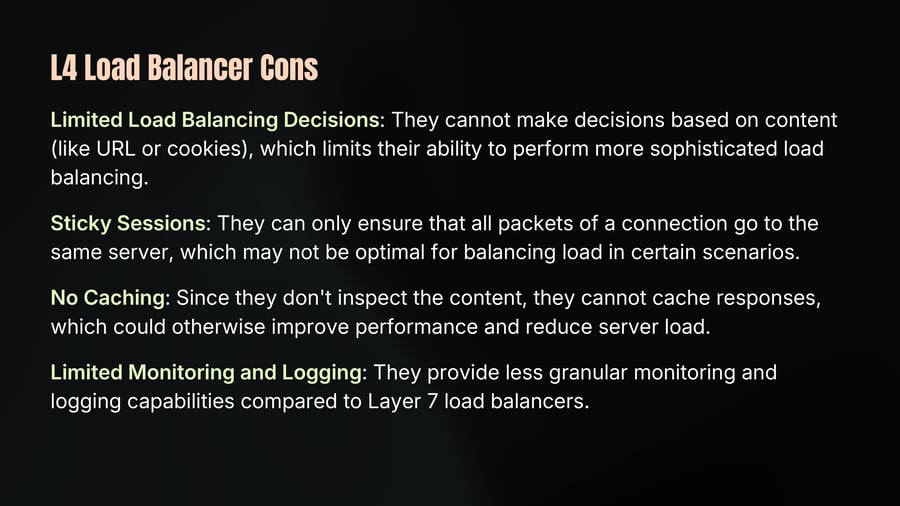

L4 Load Balancer Cons

13 L4 Load Balancer Cons
Notes
Limited Load Balancing Decisions: They cannot make decisions based on content (like URL or cookies), which limits their ability to perform more sophisticated load balancing. Sticky Sessions: They can only ensure that all packets of a connection go to the same server, which may not be optimal for balancing load in certain scenarios. No Caching: Since they don't inspect the content, they cannot cache responses, which could otherwise improve performance and reduce server load. Limited Monitoring and Logging: They provide less granular monitoring and logging capabilities compared to Layer 7 load balancers.

Layer 7 Load Balancer

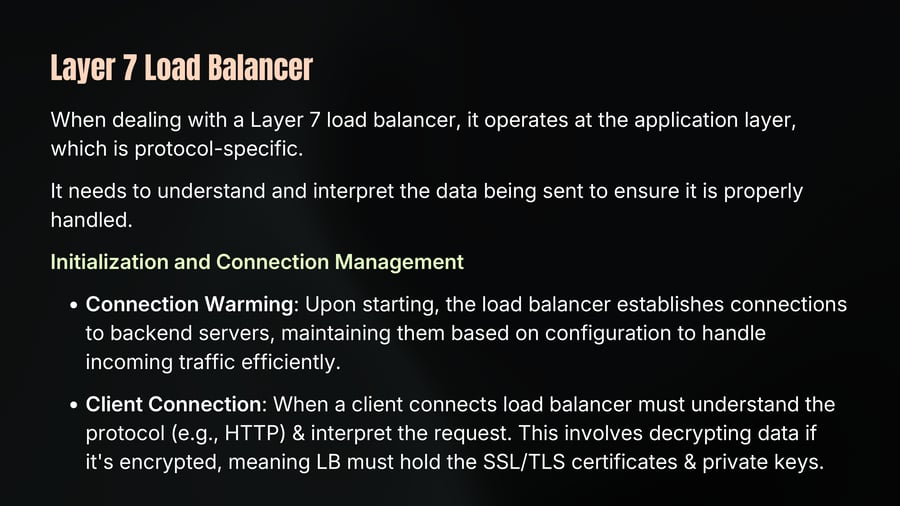

14 Layer 7 Load Balancer
Notes
When dealing with a Layer 7 load balancer, it operates at the application layer, which is protocol-specific. It needs to understand and interpret the data being sent to ensure it is properly handled. Initialization and Connection Management • Connection Warming: Upon starting, the load balancer establishes connections to backend servers, maintaining them based on configuration to handle incoming traffic efficiently. • Client Connection: When a client connects load balancer must understand the protocol (e.g., HTTP) & interpret the request. This involves decrypting data if it's encrypted, meaning LB must hold the SSL/TLS certificates & private keys.

Layer 7 Load Balancer Working

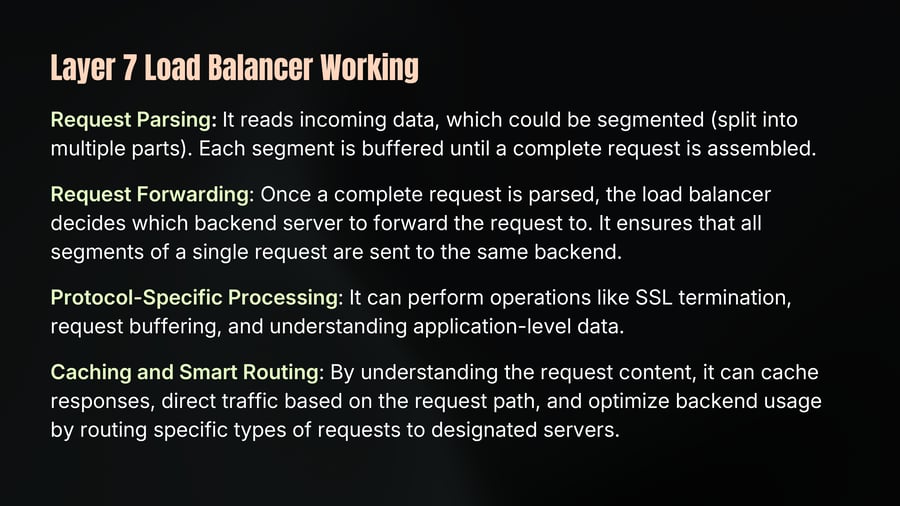

15 Layer 7 Load Balancer Working
Notes
Request Parsing: It reads incoming data, which could be segmented (split into multiple parts). Each segment is buffered until a complete request is assembled. Request Forwarding: Once a complete request is parsed, the load balancer decides which backend server to forward the request to. It ensures that all segments of a single request are sent to the same backend. Protocol-Specific Processing: It can perform operations like SSL termination, request buffering, and understanding application-level data. Caching and Smart Routing: By understanding the request content, it can cache responses, direct traffic based on the request path, and optimize backend usage by routing specific types of requests to designated servers.

Layer 7 Load Balancer Working

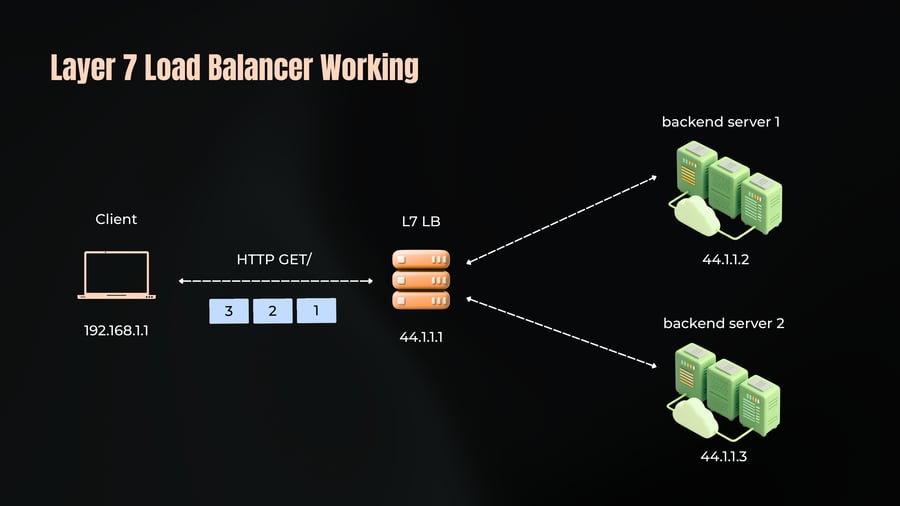

16 A network diagram showing a client (192.168.1.1) communicating with an L7 Load Balancer (44.1.1.1) via HTTP GET requests with numbered packet frames, which balances traffic across two backend servers (44.1.1.2 and 44.1.1.3).
Notes
backend server 1 Client L7 LB HTTP GET/ 44.1.1.2 3 2 1 backend server 2 192.168.1.1 44.1.1.1 44.1.1.3

Layer 7 Load Balancer Working

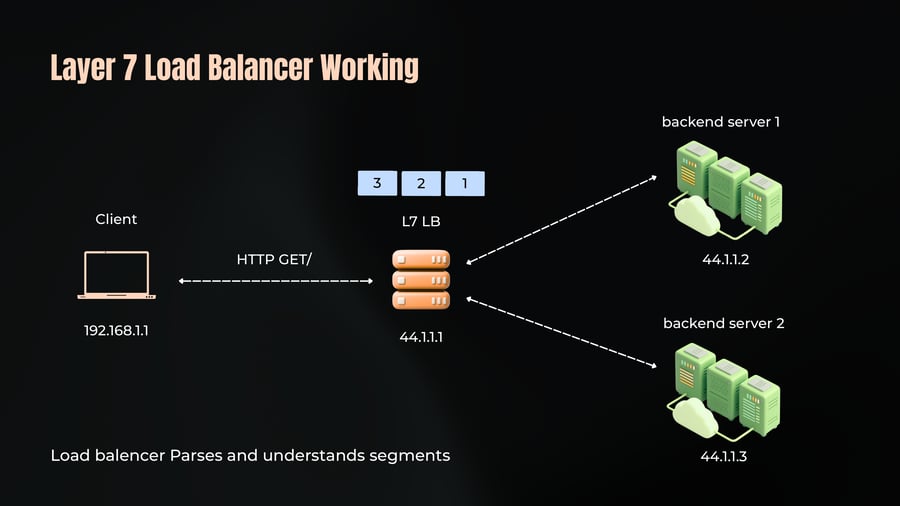

17 A network diagram illustrating a client at IP 192.168.1.1 sending an HTTP GET request to a Layer 7 load balancer at IP 44.1.1.1, which parses incoming data segments and forwards requests to two backend servers at IPs 44.1.1.2 and 44.1.1.3.
Notes
backend server 1 3 2 1 Client L7 LB HTTP GET/ 44.1.1.2 backend server 2 192.168.1.1 44.1.1.1 Load balencer Parses and understands segments 44.1.1.3

Layer 7 Load Balancer Working

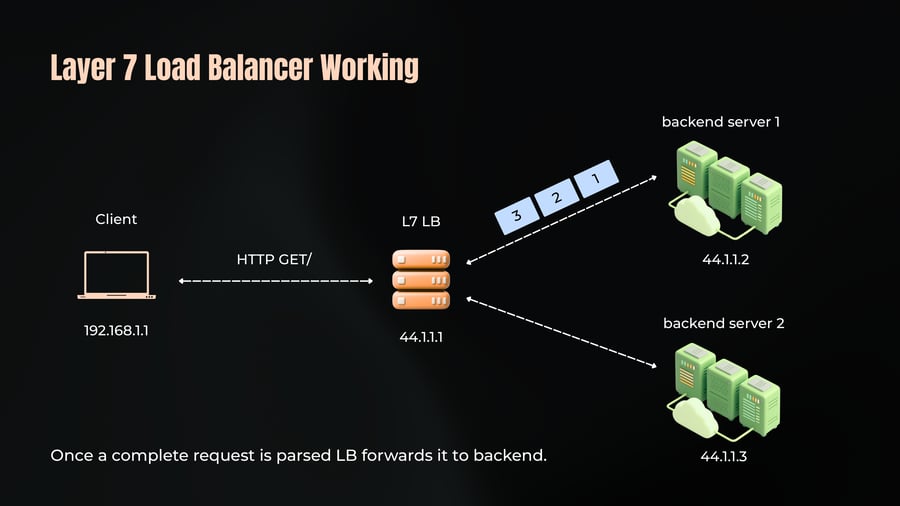

18 A network diagram illustrating a client (192.168.1.1) sending an HTTP GET request to a Layer 7 load balancer (44.1.1.1), which forwards the parsed request in segments (1, 2, 3) to backend server 1 (44.1.1.2) rather than backend server 2 (44.1.1.3).
Notes
Once a complete request is parsed LB forwards it to backend.

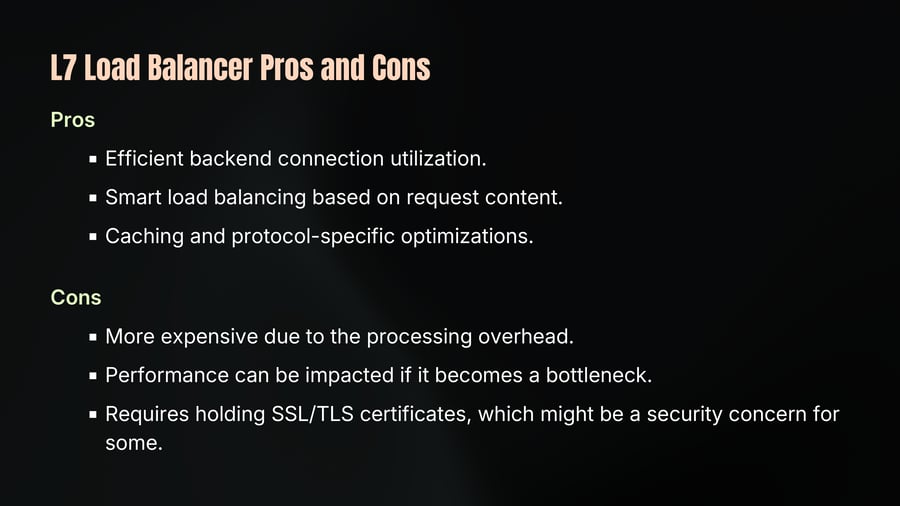

L7 Load Balancer Pros and Cons

19 L7 Load Balancer Pros and Cons
Notes
Pros Efficient backend connection utilization. Smart load balancing based on request content. Caching and protocol-specific optimizations. Cons More expensive due to the processing overhead. Performance can be impacted if it becomes a bottleneck. Requires holding SSL/TLS certificates, which might be a security concern for some.

Proxies & Load Balancers

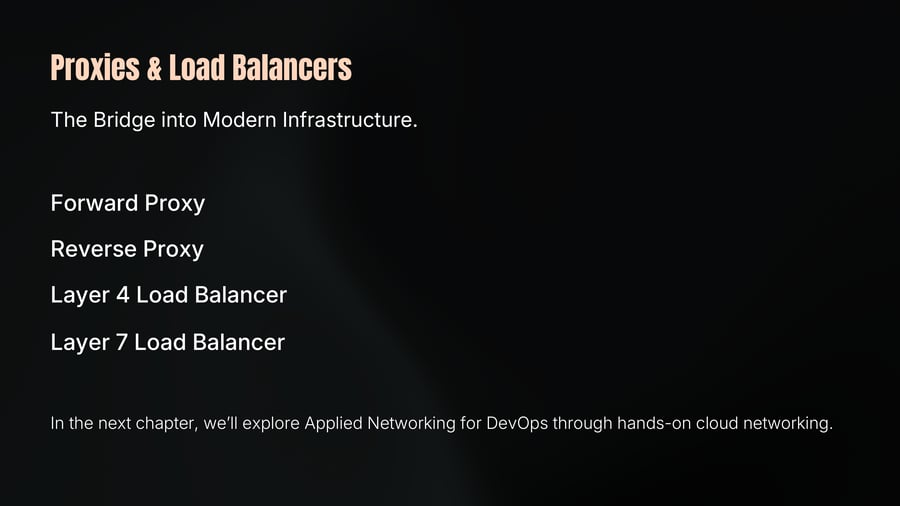

20 Proxies & Load Balancers
Notes
The Bridge into Modern Infrastructure. Forward Proxy Reverse Proxy Layer 4 Load Balancer Layer 7 Load Balancer In the next chapter, we'll explore Applied Networking for DevOps through hands-on cloud networking.
